Product Parameters
28 years manufacturing experience
Material: Frame: Plastic(UL94-VO) Impeller:Plastic(UL94-VO)
Voltage: 5VDC(4.0~5.5VDC),12VDC(6~13.8VDC),24VDC(12~27.6VDC)
Temperature: Operation Temperature: -10~70°C (Non-condensing)
Specials: AS, RD, FG, PWM, Temperature Control, IP56
|
Model |
Voltage |
Current |
Speed |
Air Volume |
Static Pressure |
Noise |
Weight |

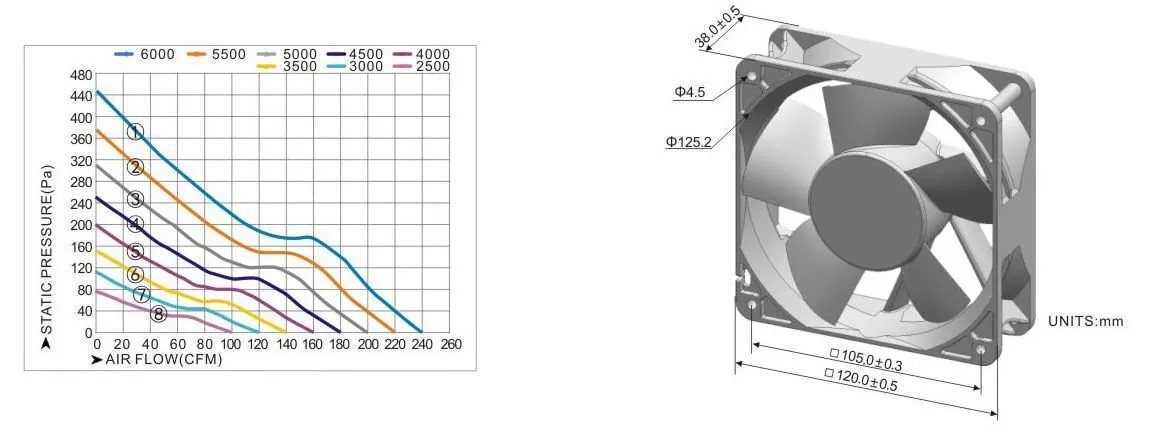

Curve |
|||
|
V |
A |
RPM |
CFM |
m³/min |
mm-H20 |
Inch--H20 |
Pa |
dBA |
g |
||
|
LWAD12038LX-09 |
12 |
3.5 |
6000 |
240.5 |
6.81 |
45.7 |
1.8 |
448 |
63.5 |
260g |
① |
|
LWAD12038LX-10 |
12 |
3.5 |
5500 |
220.5 |
6.24 |
38.4 |
1.51 |
376 |
61.6 |
260g |
② |
|
LWAD12038LX-11 |
12 |
3.5 |
5000 |
200.4 |
5.68 |
31.8 |
1.25 |
311 |
59.5 |
260g |
③ |
|
LWAD12038LX-12 |
12 |
3.5 |
4500 |
180.4 |
5.11 |
25.7 |
1.01 |
252 |
57.3 |
260g |
④ |
|
LWAD12038LH-13 |
12 |
1.5 |
4000 |
160.3 |
4.54 |
20.3 |
0.8 |
199 |
54.7 |
260g |
⑤ |
|
LWAD12038LM-14 |
12 |
1 |
3500 |
140.3 |
3.97 |
15.6 |
0.61 |
152 |
51.8 |
260g |
⑥ |
|
LWAD12038LL-15 |
12 |
0.7 |
3000 |
120.3 |
3.41 |
11.4 |
0.45 |
112 |
48.5 |
260g |
⑦ |
|
LWAD12038LD-16 |
12 |
0.5 |
2500 |
100.2 |
2.84 |
7.9 |
0.31 |
78 |
44.5 |
260g |
⑧ |
|
LWAD12038MX-09 |
24 |
2 |
6000 |
240.5 |
6.81 |
45.7 |
1.8 |
448 |
63.5 |
260g |
① |
|
LWAD12038MX-10 |
24 |
2 |
5500 |
220.5 |
6.24 |
38.4 |
1.51 |
376 |
61.6 |
260g |
② |
|
LWAD12038MX-11 |
24 |
2 |
5000 |
200.4 |
5.68 |
31.8 |
1.25 |
311 |
59.5 |
260g |
③ |
|
LWAD12038MX-12 |
24 |
2 |
4500 |
180.4 |
5.11 |
25,7 |
1.01 |
252 |
57.3 |
260g |
④ |
|
LWAD12038MH-13 |
24 |
0.6 |
4000 |
160.3 |
4.54 |
20.3 |
0.8 |
199 |
54.7 |
260g |
⑤ |
|
LWAD12038MM-14 |
24 |
0.45 |
3500 |
140.3 |
3.97 |
15.6 |
0.61 |
152 |
51.8 |
260g |
⑥ |
|
LWAD12038ML-15 |
24 |
0.3 |
3000 |
120.3 |
3.41 |
11.4 |
0.45 |
112 |
48.5 |
260g |
⑦ |
|
LWAD12038MD-16 |
24 |
0.2 |
2500 |
100.2 |
2.84 |
7.9 |
0.31 |
78 |
44.5 |
260g |
⑧ |
|
LWAD12038HX-09 |
48 |
1.2 |
6000 |
240.5 |
6.81 |
45.7 |
1.8 |
448 |
63.5 |
260g |
① |
|
LWAD12038HX-10 |
48 |
1.2 |
5500 |
220.5 |
6.24 |
38.4 |
1.51 |
376 |
61.6 |
260g |
② |
|
LWAD12038HX-11 |
48 |
1.2 |
5000 |
200.4 |
5.68 |
31.8 |
1.25 |
311 |
59.5 |
260g |
③ |
|
LWAD12038HX-12 |
48 |
1.2 |
4500 |
180,4 |
5.11 |
25.7 |
1.01 |
252 |
57.3 |
260g |
④ |
|
LWAD12038HH-13 |
48 |
0.35 |
4000 |
160.3 |
4.54 |
20.3 |
0.8 |
199 |
54.7 |
260g |
⑤ |
|
LWAD12038HM-14 |
48 |
0.25 |
3500 |
140.3 |
3.97 |
15.6 |
0.61 |
152 |
51.8 |
260g |
⑥ |
|
LWAD12038HL-15 |
48 |
0.2 |
3000 |
120.3 |
3.41 |
11.4 |
0.45 |
112 |
48.5 |
260g |
⑦ |
|
LWAD12038HD-16 |
48 |
0.15 |
2500 |
100.2 |
2.84 |
7.9 |
0.31 |
78 |
44.5 |
260g |
⑧ |
