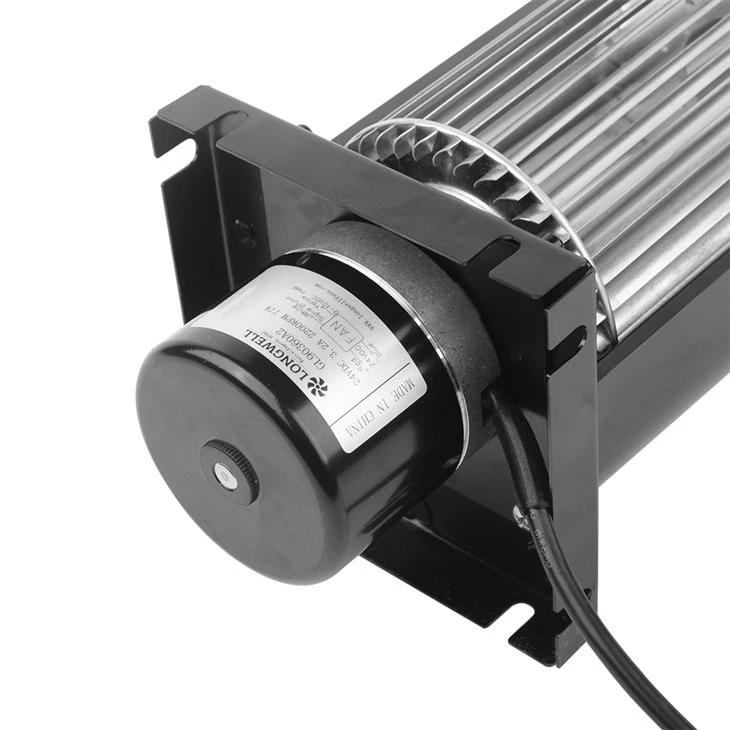

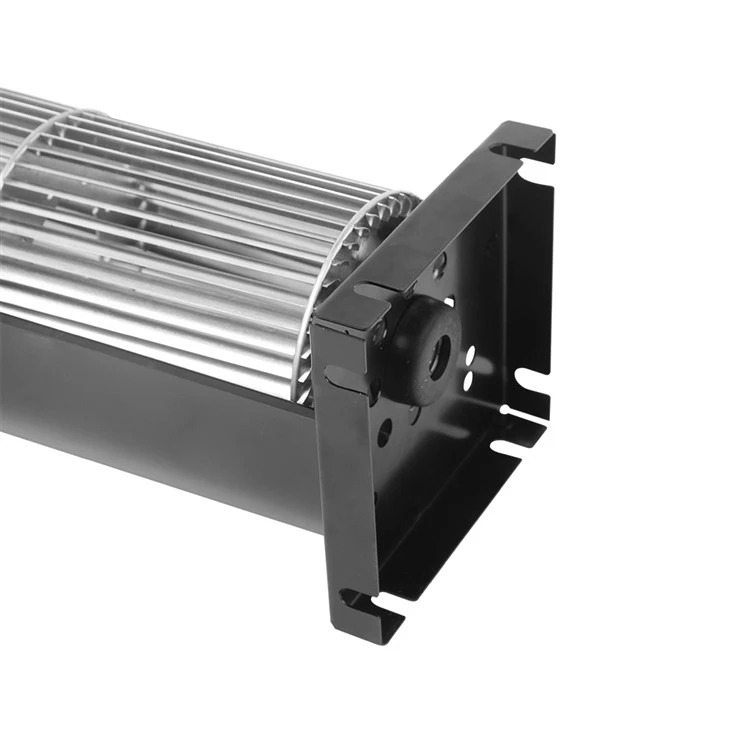

110mm DC Tangential Fan For High-temperature Industrial Ovens

Ø110mm DC Cross Flow Fan LWCD-110

Motor type:

3 Phase BLDC Motor

Housing Material:

Steel+Aluminum Alloy

Blade Material:

Aluminum, Ø110mm

Bearing:

Ball bearing / Sleeve Bearing

Optional voltage:

24V

Speed:

1200 RPM

Air Flow Range:

881~1845 m³/h

Noise Range:

55~59 dBA

Number of blowers:

Single

Nominal impeller lengths:

380mm, 520mm, 620mm, 720mm, 820mm

Max nominal length of coupled fans:

Please contact us for details

Insulation Class:

B

Operating temperature:

(-25°C ~+ 60°C)

Optional heater element:

Please contact us for details

Speed Control:

0-10V / PWM control

IP level:

IP21 (special IP rating on request)
