Special Features:
Three phase motor
No electromagnetic noise
Rubber damping structure assembly
Scientific slope impeller
All adopt ball bearings
Long life span
Fan surface electrophoresis treatment, anti-corrosion

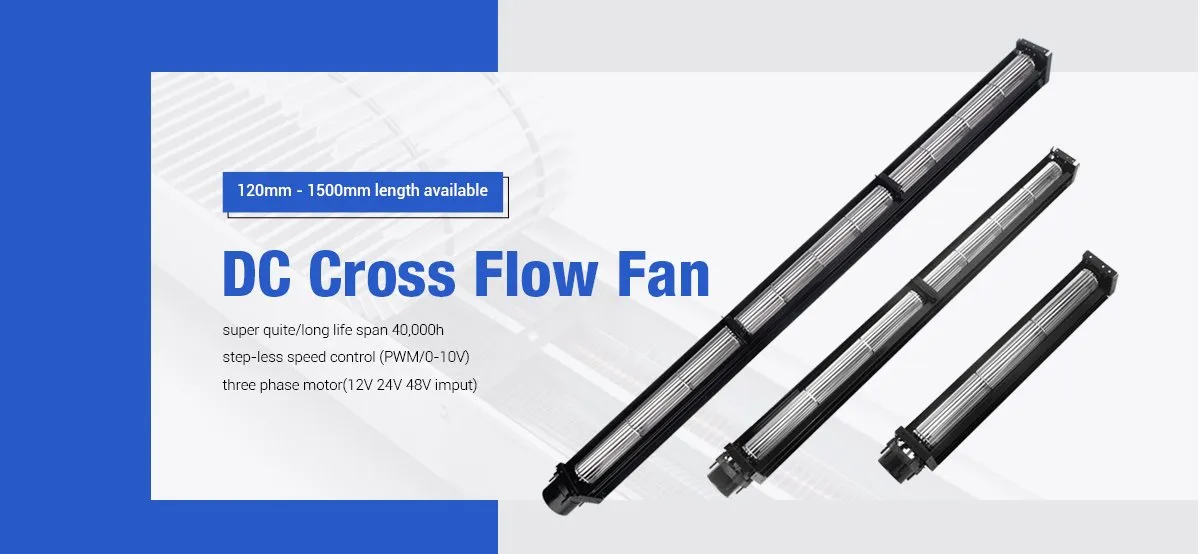

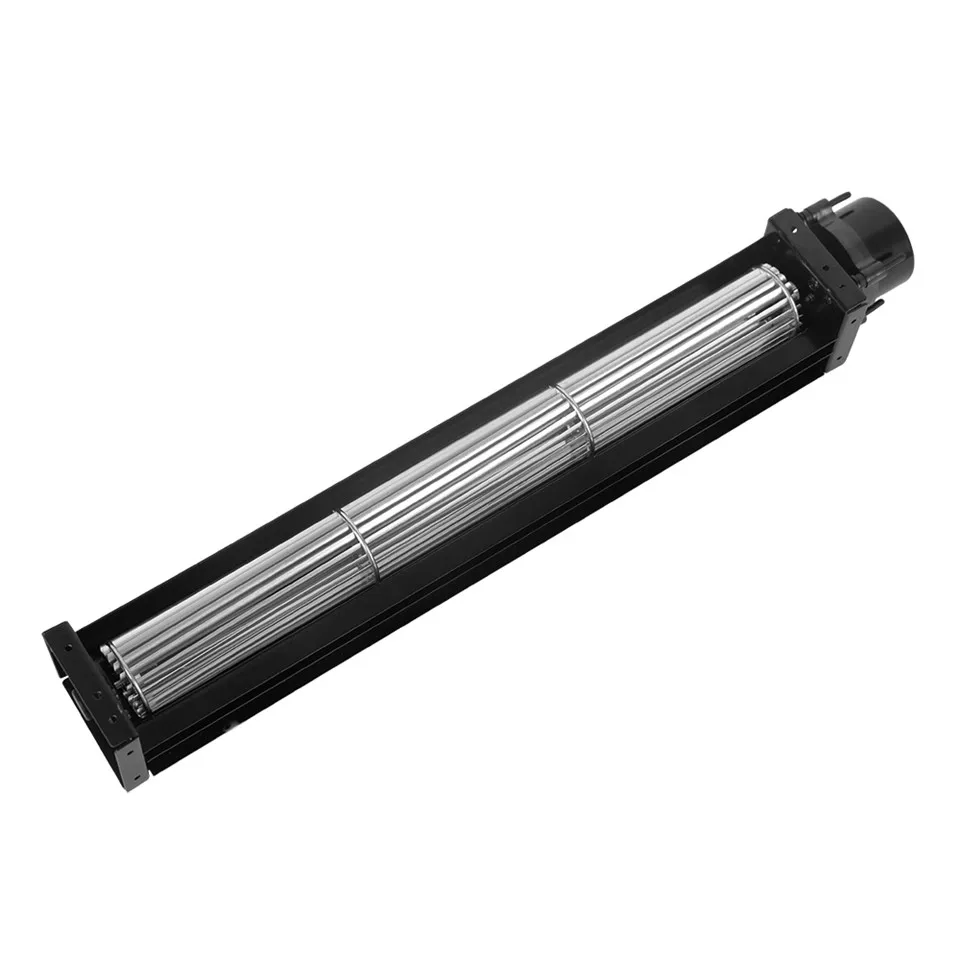

Ø30mm DC cross flow fan
Motor type: DC Brushless External Rotor Motor
Housing Material : Aluminum alloy
Blade Material: Aluminum, Ø25mm
Bearing: Ball bearing / Sleeve Bearing
Nominal impeller lengths: 90mm, 120mm, 190mm, 250mm, 290mm, 350mm
Max nominal length of coupled fans: Please contact us for details
Insulation Class : B/F/H
Operating temperature: -25°C ~+ 60°C
Optional heater element: Please contact us for details
Speed Control: 0-10V / PWM control
RoHS compliance: Yes
IP level: IP21 (special IP rating on request)
Applications of a cross flow blower:
Cross flow blowers are typically used in the HVAC industry. It is ideal for applications like: Melting machine, Humidifying equipment, Air curtains, Drying units, Automotive air conditioning, Transformer air cooling
Technical Specification
Applications of Cross Flow Fan：
● HVAC systems
● Floor Heating Appliances
● Trench Heating Appliances
● Floor Heating
● Bus/Caravan Heater
● Air Conditioner
● Power Supply Units
● Measuring Instruments
● Electronic Switch Systems
● Automatic Vending Machines
● Air-conditioning & Heating Apparatus
● Computers (CPU, Peripheral&Terminal Equipment)
● Acoustic Equipment
● Flight Instrumentation
● Numerical Control(NC)Units
● Data Communications Terminal Equipment
● Office x Machinery Appliances&Copying Machines
