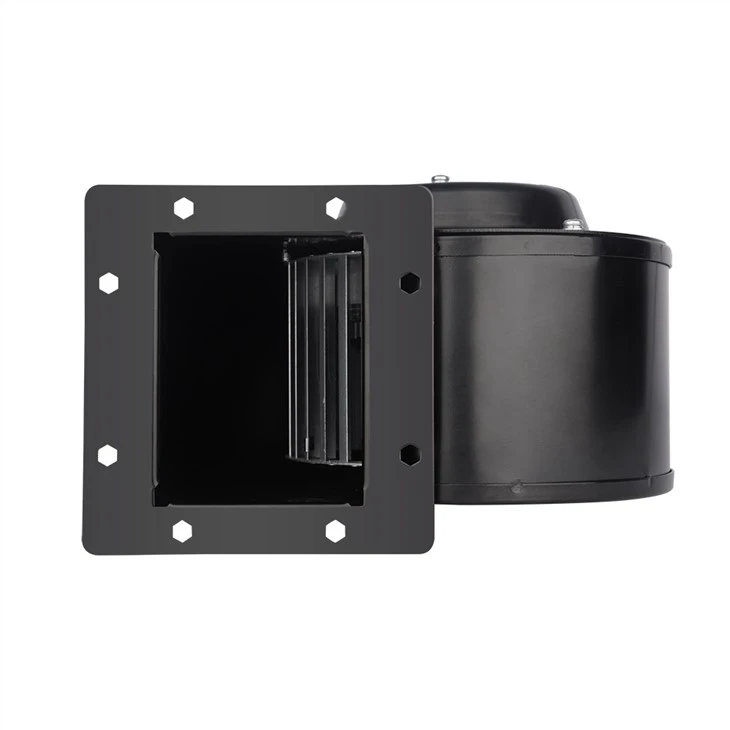

AC 280mm High Pressure Single Inlet Forward Curved Blower Fan
Motor Type: AC External Rotor Motor
Impeller Material: Galvanized Metal Sheet
Protection Class: IP44/IP54
Insulation Class: F
Certification: CE/CCC
Operation Temperature: - 25 ℃ ~ +60 ℃
Protection: Thermal Overload Protector ( TOP)
| Model | Motor Diameter |
Rated Voltage |
Frequency | Rated Power |
Rated Current |
Speed | Air Flow | Air Pressure |
Noise | Capacitor | Curve |
| mm | V | Hz | W | A | RPM | m³/h | Pa | dBA | uF | ||
| LWFA4D280-188ST-01 | 180 | 380 | 50 | 1400 | 2.5 | 1400 | 3811 | 464 | 82 | / | ① |
