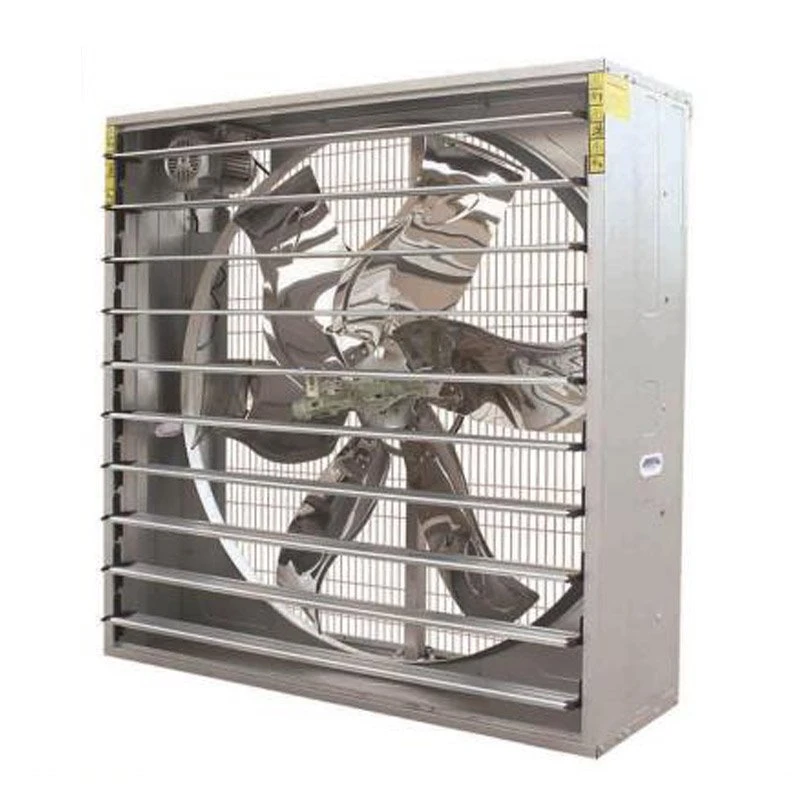

Model no.: wall mounted industrial axial flow exhaust fan greenhouse ventilation fans
# Advantages of our greenhouse / warehouse ventilation fans axial flow fans
● This High Class Fan is composed of a blade, motor, outer frame, protecting nets and supporting frames and shutters. The shutters are opened by the Push-Pull certrifugal system.
● The Majar parts are made of galvanized steel sheets ( 180g/275g/M2 ) zinc coating ) and stainless steel sheets.

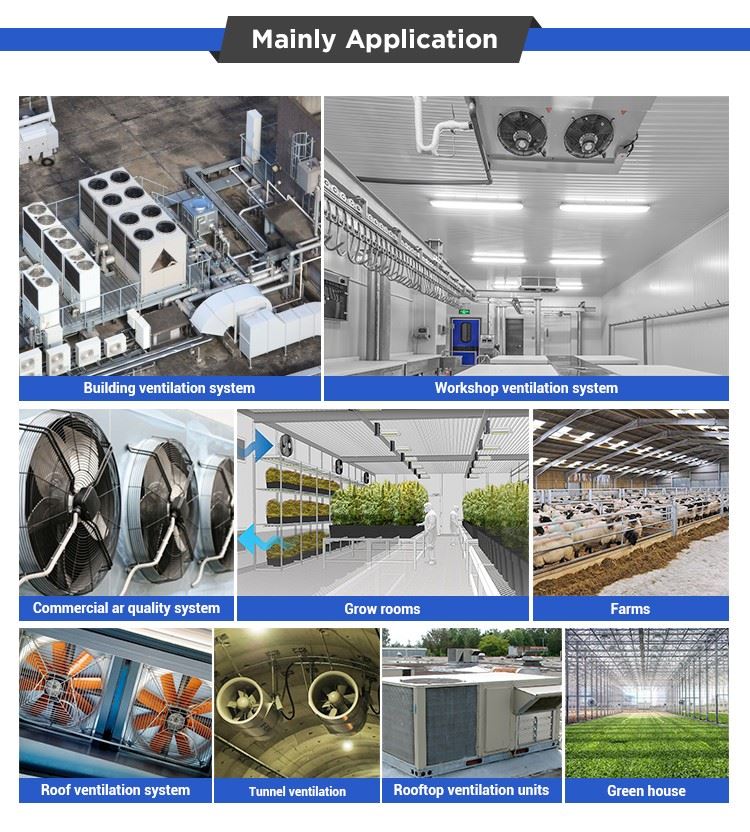

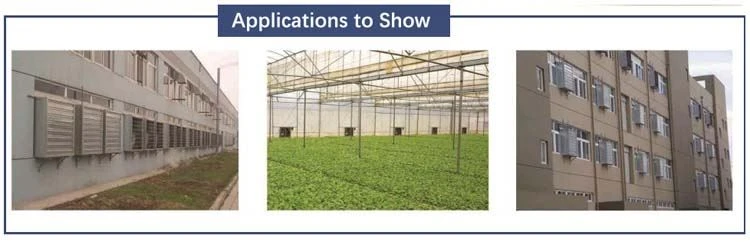

● Based on sound aerodynamic principles, wind resistance in minimized and efficient airflow is achieved. All products are used in a wide range of settings, including various types of farms, greenhouses and factory buildings.
Model No. | Blade Diameter | Blade Speed | Motor | Air Flow | Pressure | Power | Voltage | Dimensions(mm) | |||
Speed | |||||||||||
mm | Inch | RPM | RPM | m³/h | Pa | W | V | L | W | H | |
LW-800 | 710 | 28 | 650 | 1400 | 18000 | 60 | 370 | 380 | 800 | 800 | 450 |
LW-1000 | 910 | 36 | 650 | 1400 | 16000 | 60 | 550 | 380 | 1000 | 1000 | 450 |
LW-1100 | 1000 | 40 | 600 | 1400 | 33000 | 70 | 750 | 380 | 1100 | 1100 | 450 |
LW-1380 | 1270 | 50 | 440 | 1400 | 43500 | 56 | 1100 | 380 | 1380 | 1380 | 450 |
LW-1530 | 1400 | 55 | 420 | 1400 | 51000 | 56 | 1500 | 380 | 1530 | 1530 | 450 |

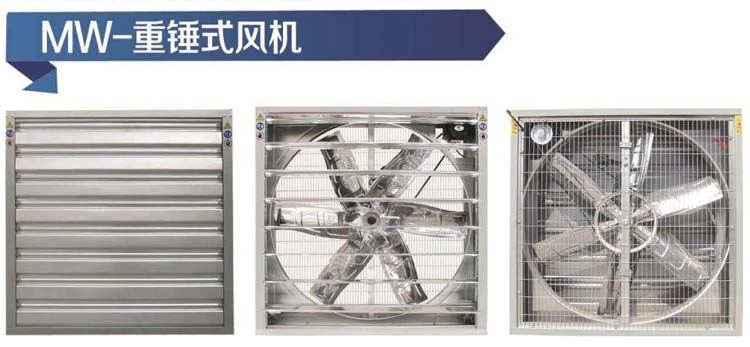

Fans Mainly consists of the blade, motor, frame, protect net, bracing cage, shutters.
The motor drives blade to cause air frlow and louver window can open and close automatically to keep the dust from entering.
Model No. | Blade Diameter | Blade Speed | Motor | Air Flow | Pressure | Power | Voltage | Dimensions(mm) | |||
Speed | |||||||||||
mm | Inch | RPM | RPM | m³/h | Pa | W | V | L | W | H | |
LWF-600 | 500 | 24 | 680 | 1400 | 6500 | 60 | 370 | 380 | 600 | 600 | 370 |
LWF-800 | 710 | 29 | 660 | 1400 | 22000 | 60 | 370 | 380 | 800 | 800 | 400 |
LWF-900 | 750 | 30 | 630 | 1400 | 28000 | 65 | 550 | 380 | 900 | 900 | 400 |
LWF-1000 | 900 | 36 | 610 | 1400 | 30000 | 70 | 550 | 380 | 1000 | 1000 | 400 |
LWF-1100 | 1000 | 40 | 600 | 1400 | 32500 | 70 | 750 | 380 | 1100 | 1100 | 400 |
LWF-1220 | 1100 | 44 | 460 | 1400 | 38000 | 73 | 1100 | 380 | 1220 | 1220 | 400 |
LWF-1380 | 1250 | 50 | 439 | 1400 | 44000 | 56 | 1100 | 380 | 1380 | 1380 | 400 |
LWF-1530 | 1400 | 56 | 325 | 1400 | 55800 | 60 | 1500 | 380 | 1530 | 1530 | 400 |
Product Features:

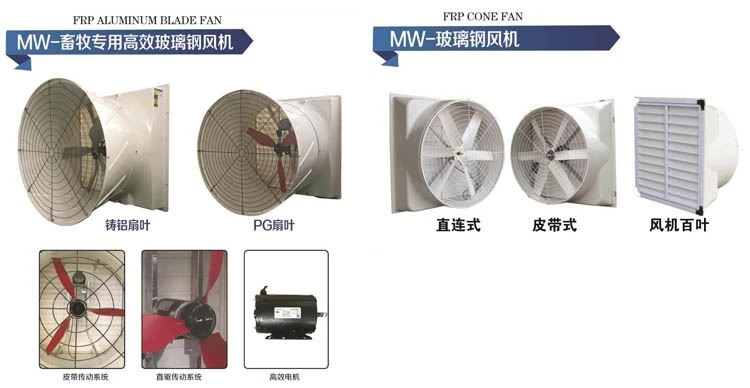

- Fiberglass fan is widely used in corrosive gas place like piggery farm, poultry fartm.
- Specifications:
- UV resistant fiberglass housing;
- Fiberglass cone standard on all fans, can improve 10 % efficiency;
- Aluminum blade with sawtooth design, reduce the noise level;
- High quality imported pillow block bearings;
- Automotive style belt tensioner;
- Higher quality motor will be available and OEM design.
Model No. | Blade Diameter | Blades QTY | Speed | Air Flow | Power | Voltage | Dimensions(mm) | ||
mm | Inch | pcs | RPM | CFM | Kw/HP | V | without Cone | withCone | |
LW-1460 | 1250 | 50 | 6 | 520 | 26000 | 1.1/1.5 | 380/220V | 1460*1460*590 | 1460*1460*1270 |
LW-1260 | 1080 | 43 | 520 | 23500 | 0.75/1 | 50/60Hz | 1260*1260*560 | 1260*1260*1200 | |
LW-1060 | 880 | 36 | 520 | 16600 | 0.55/0.75 | 1060*1060*560 | 1060*1060*1160 | ||
LW-850 | 660 | 25 | 700 | 7700 | 0.37/0.5 | 850*850*450 | 850*850*950 | ||
LW-660 | 480 | 19 | 950 | 4100 | 0.37/0.5 | 660*660*450 | |||
LW-560 | 380 | 15 | 950 | 3000 | 0.37/0.5 | 560*560*450 | |||
