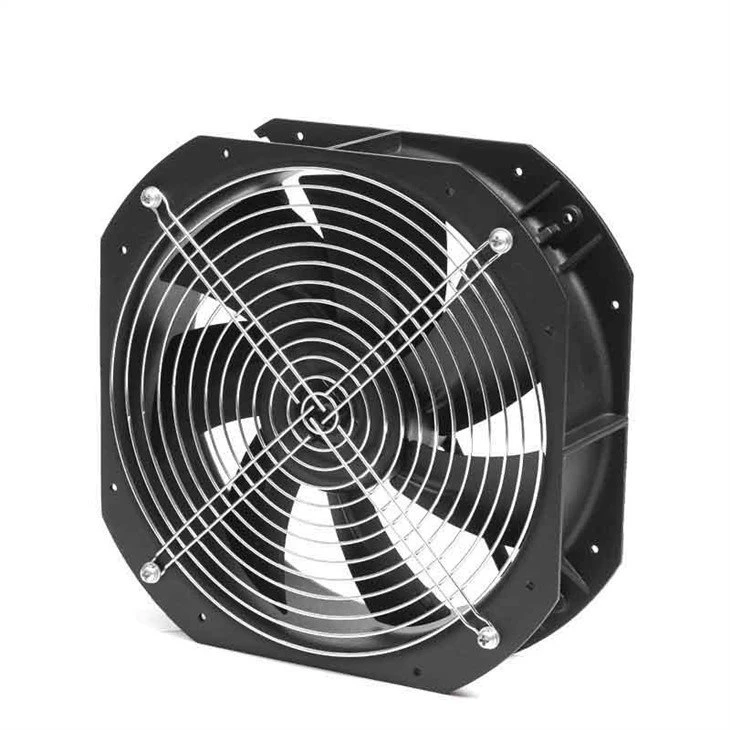

Model no.: high quality low noise DC Axial Flow Fan 24v 48v 310v
Diameters: 200mm, 250mm, 300mm...Customized Size
Impeller Material: PA66, Sheet Steel,
Framge Material: Aluminum Alloy, Seet Steel, etc.
Bearing Type: Ball Bearing
Other: IP44, Insulation Class: F Certification: CCC/CE/ETL/UL
Lead Wire: AWG#20 UL 1007
Motor: BLDC brushless External Rotor Motor with 24v/48v or 310V
Operating Temperature: -25℃～+65℃
Advantages of our AC axial flow fans
-Control input 0~10VDC/PWM, Tech output, Locked-Rotor protection,
Reverse Polarity, Over-voltage protection
Soft Start Protection
-Long life span
-OEM & ODM available
-Cold Rolled Steel Materials.
# Model #1: LWAD200S
Model | Bearing | Rated | Operating | Rated | Rated | Speed | Air Flow | Air | Noise |
B/S | V | V | A | W | RPM | m³/h | Pa | dBA | |
LWAD200S-8PB-01 | Ball | 24 | 16~28 | 2.4 | 50 | 2750 | 950 | 220 | 68 |
LWAD200S-8PB-02 | Ball | 48 | 30~61 | 1.2 | 50 | 2750 | 950 | 220 | 68 |
# Model #2: LWAD250S
Model | Bearing | Rated | Operating | Rated | Rated | Speed | Air Flow | Air | Noise |
B/S | V | V | A | W | RPM | m³/h | Pa | dBA | |
LWAD250S-7PB-01 | Ball | 24 | 16~28 | 4.9 | 100 | 2750 | 1900 | 290 | 76 |
LWAD250S-7PB-02 | Ball | 48 | 30~61 | 2.5 | 100 | 2750 | 1900 | 290 | 76 |
# Wiring Diagram:
