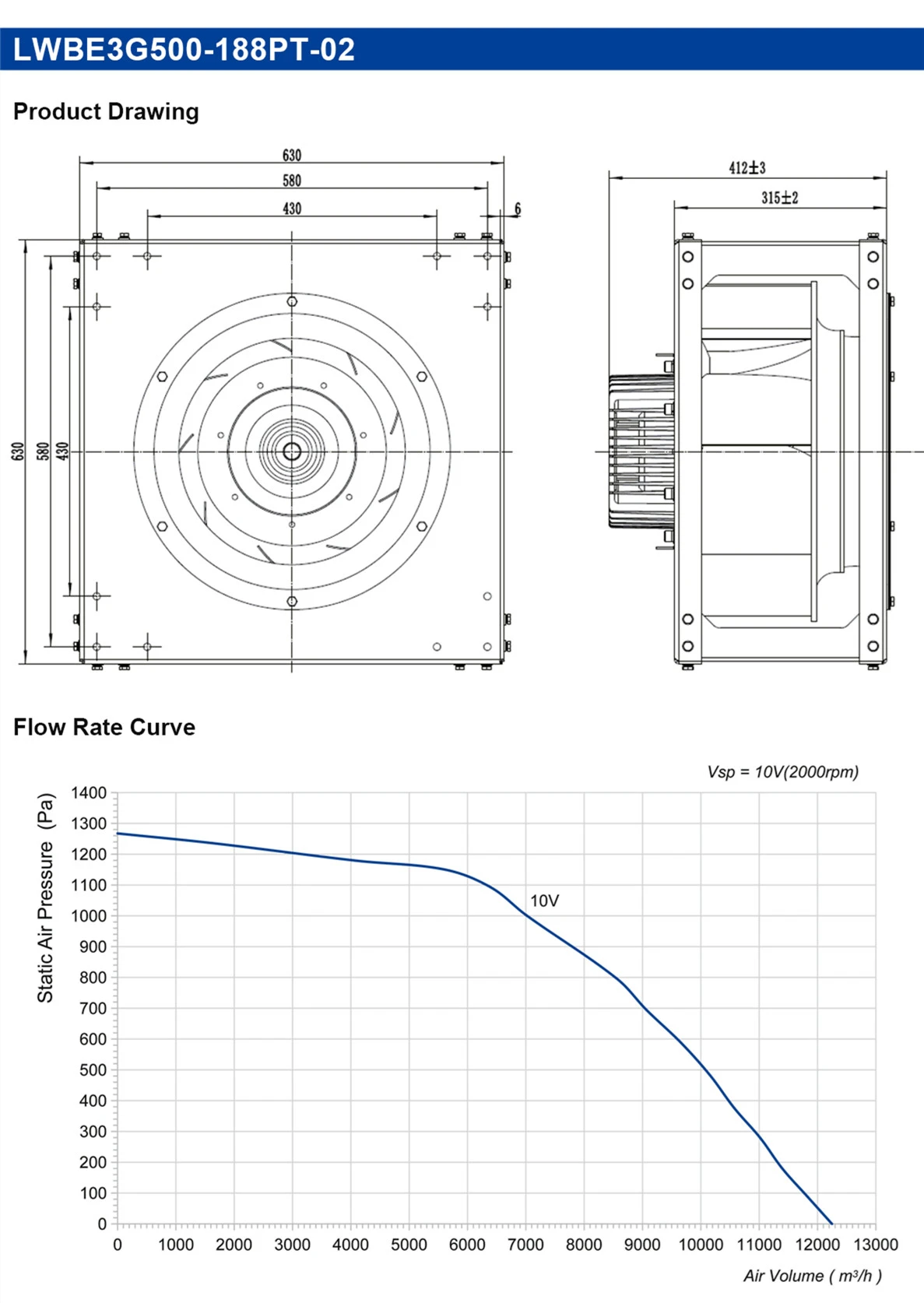

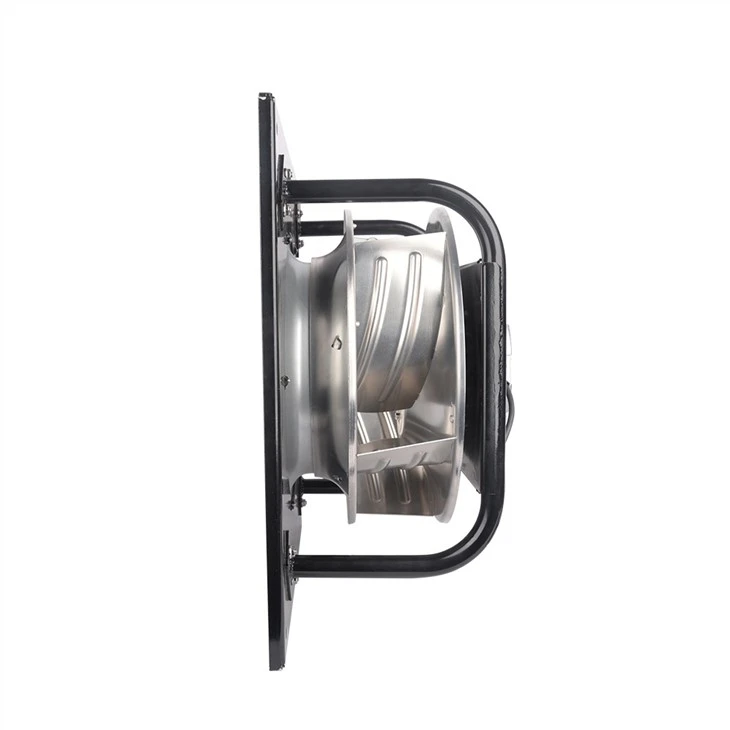

Model Dimesions: 500mm EC Electric plenum centrifugal fan
EC external rotor motor: 400V 50/60Hz
Power Input Range: 1250W~5500W
Max Air Flow Ranges: 8200~15370 m³/h
Max Air Pressure: 600~1800 Pa
IP Level: IP 55, IP 54
Speed Control: Control Input 0-10VDC / PWM
Life expectance: 50,000Hours(L10)，At 40℃ room, humidity 15%~65%RH.
Electronic Protection: Locked-rotor Protection; Locked-Rotor Protection; Over- Current Protection; Over- Voltage Protection; Soft Start; Reverse Polarity Protection
Ambient Temp Ranges: -25 ℃ - +60 ℃Transformer air cooling
Applications
Special Features:
Featuring a unique, high-efficiency backward curved radial diffuser wheel and an EC external rotor motor for the ultimate in low weight, small space packaged units.
High Efficiency
Low Noise
High Volume Capacities
Compact Onboard EC Motor
For clean air applications, server cooling, heat pumps, etc.
