Model Dimesions: 400mm EC Electric plenum centrifugal fan
EC external rotor motor: 230V/400V 50/60Hz
Power Input Range: 560W~3370W
Max Air Flow Ranges: 3920~11000 m³/h
Max Air Pressure: 430~1680 Pa
IP Level: IP 55 ,IP 54
Speed Control: Control Input 0-10VDC / PWM
Life expectance: 50,000Hours(L10)，At 40℃ room, humidity 15%~65%RH.
Electronic Protection: Locked-rotor Protection; Locked-Rotor Protection; Over- Current Protection; Over- Voltage Protection; Soft Start; Reverse Polarity Protection
Ambient Temp Ranges: -25 ℃ - +60 ℃Transformer air cooling
Applications

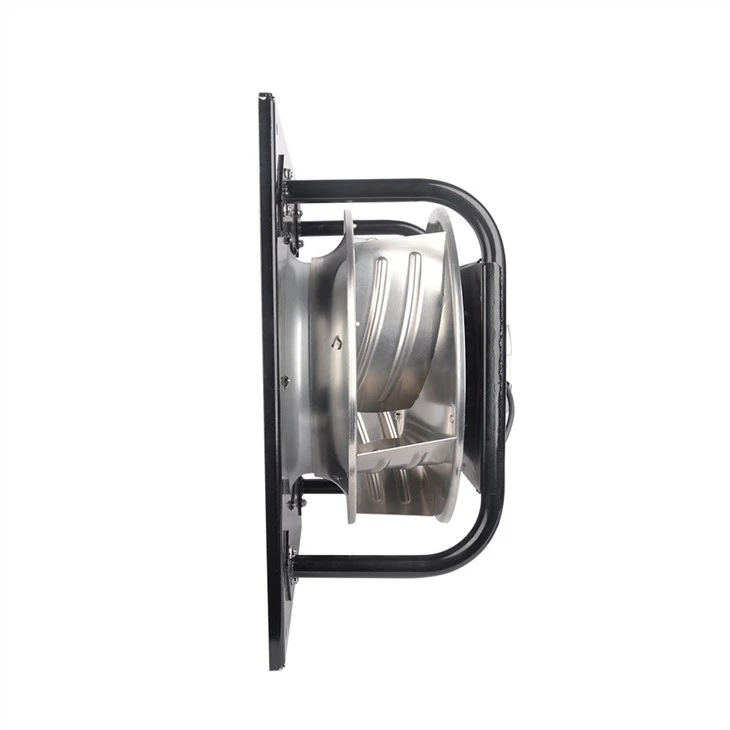

400mm EC Electric plenum centrifugal fan
Special Features:
The static pressure of this high-performance centrifugal fan has increased to 1800pa
Air flow up to 17000 M ³/ h
The available sizes are
175, 190, 220, 225, 250, 280, 310, 355, 400, 450, 500, 560, 630mm respectively.
More advantages include high reliability, energy efficiency and compactness.
Solid cube frame design
Simple installation, plug and play
