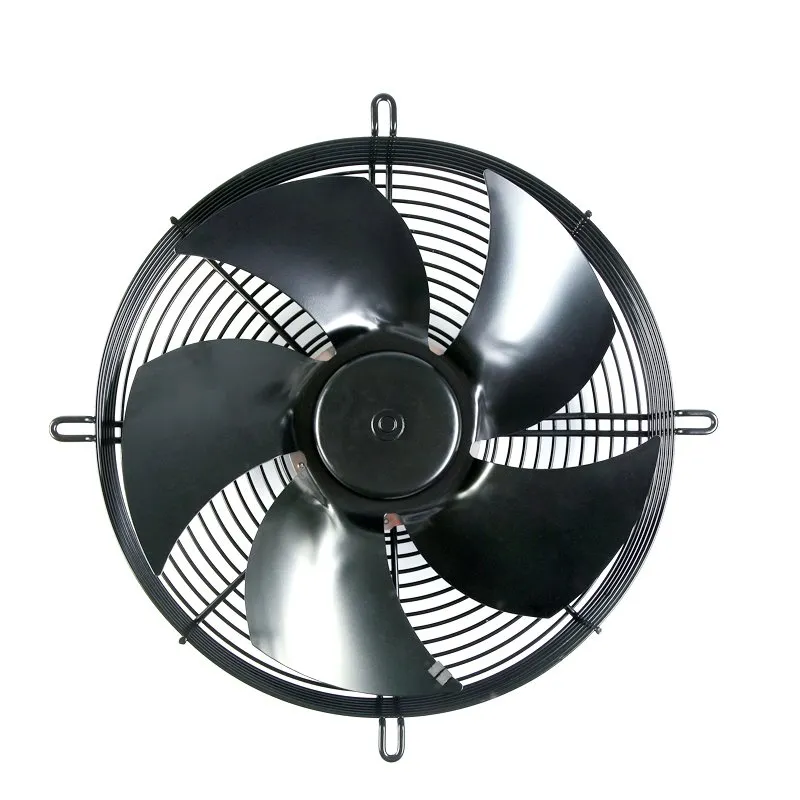

EC Axial Fan

Model no.: high quality low noise DC Axial Flow Fan 24v 48v 310v

Diameters: 200mm - 630mm ( Diameter of Blades )

Impeller Material: Sheet Steel,

Framge Material: Seet Steel, etc.

Bearing Type: Ball Bearing

Lead Wire: AWG#20 UL 1007

Motor: BLEC brushless External Rotor Motor

Operating Temperature: -25℃～+65℃

Advantages of our EC axial flow fans

-Control input 0~10VDC/PWM, Tech output, Locked-Rotor protection,

Reverse Polarity, Over-voltage protection

Soft Start Protection,

-Professional EC R&D engineer team;

-Higher efficiency 60～80%;

-More energy saving;

-Low Temperature rise;

-More stable.

Axial fans are not only particularly compact and therefore very flexible to use, but also provide excellent efficiency and help to keep operating costs at a low level for the long term. The excellent operational smoothness of our axial fans not only extends the service life, but also ensures minimal noise development, even under full load. With LONGWELL you get both powerful, robust and particularly resilient AC fans as well as quiet, efficient and environmentally friendly EC fans. This means we always have exactly the axial fan that is made for the individual and often complex challenges of our customers.

Smart EC technology or cost-efficient AC motor variants.

As well as axial fans with smart EC technology, ZIEHL-ABEGG also offers simple and cost-efficient AC motor variants. The product spectrum ranges from axial fans with particularly compact dimensions for every installation situation, EC small fans perfect for food refrigeration, and fans for lower pressures for use in agriculture, for example, to medium-pressure axial fans for flexible use in drying systems. Competent advice and technical specialised solutions: ZIEHL-ABEGG offers everything from a single source.

# Model Specifications Data

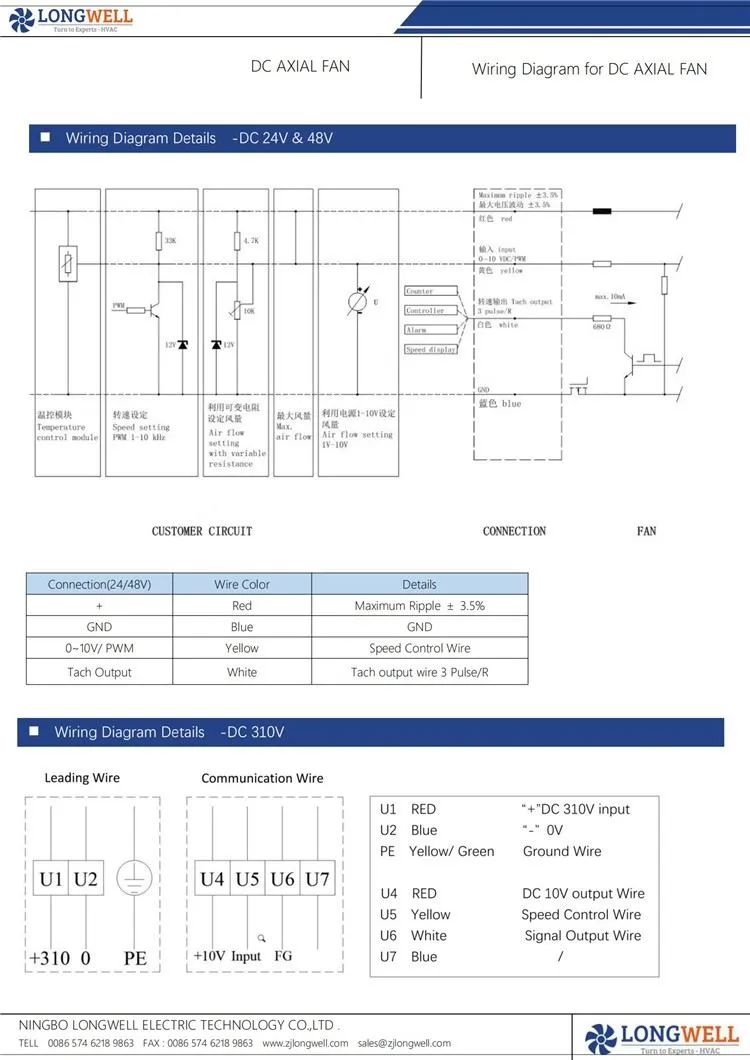

# Wiring Diagram:

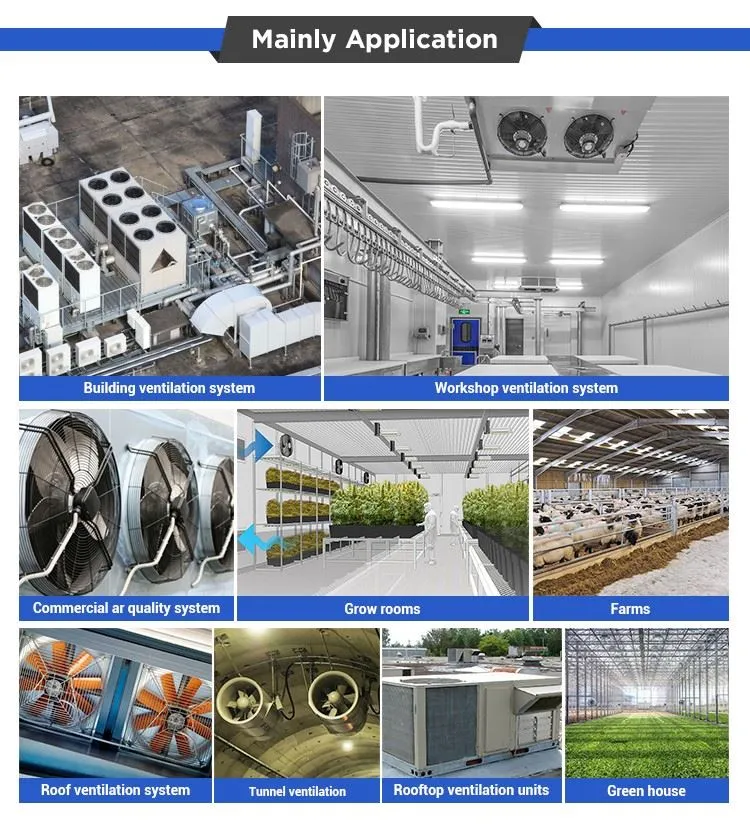

Application

1.Condensers, Evaporators;

2.Chillers, Cooling Units;

3.Air-conditioning Fans;

4.Exhaust Ventilation;

5.Cold Storage.
