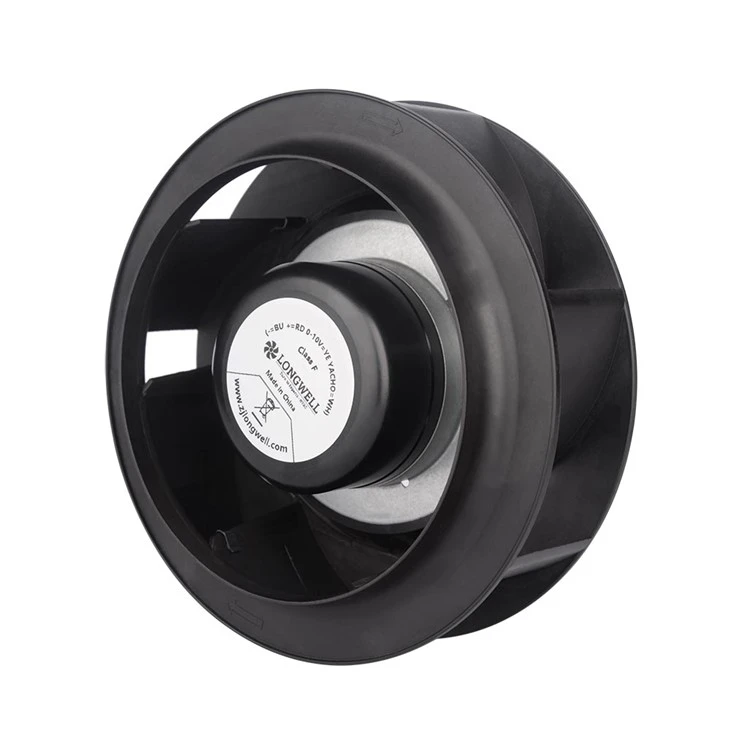

EC Backward Curved Centrifugal Fan

A number of electronic appliances, industrial machines, and so on require cooling and ventilation as part of their design to prevent excess heating. AC or DC motor centrifugal fans are commonly fitted for this use. However, electronically commutated fans are gaining traction in this segment. EC or electronically commutated fans combine the best features of AC fans and DC fans. While they are powered by a brushless EC motor, the fan rotors are controlled by an assembly of printed circuit boards. EC centrifugal fans auto adjust the power consumption and hence are energy efficient. These fans offer energy-efficient ventilation inside the device or equipment, thus preventing overheating and subsequent damage. Longwell is one of the known EC centrifugal fan manufacturers and offers them in various sizes and configurations.

Model no.: EC Backward Curvec centrifugal fans with 115V / 230v / 380v Series

Impeller SIZE: 175mm - 400mm (diameter )

Features:

Motor: BLEC Motor

Bearing Type: Ball Bearing

Impeller Material: Propylene with Glass-Fiber / Galvanized Sheet steel / Sheet aluminium.

Operating Temp: -25°C~+60°C

Type of protection: IP54, IP44

Certification: CE, UL, RoHS, CCC, ETL, etc

Click on the model below for specifications, and Order Online

How EC Centrifugal Fans Work?

The centrifugal impeller of EC fans pulls in air by rotating blades and pushes it radially outward. Their EC motor is electronically controlled which results in precise and variable speed control, noiseless operation, monitoring of energy consumption, and reduced need for maintenance. These fans have brushless EC motors with permanent magnets on the rotor, and the PCBA controls the current and voltage applied to the motor. The rotor acts as a permanent magnet, while the stator has coils that get electromagnetically charged. This way, the opposite poles of the rotor and stator are attracted towards each other, and the EC motor operates based on this interaction between the rotor and stator. The coil is energized once the rotor moves near it while rotating, and this loop continues. The coil to be energized and the position of the rotor is controlled by the electronic controller or sensor.

Key Beneficial Features of Our EC Centrifugal Fans

• Here's why you can totally rely on us for your EC centrifugal fan requirements as also they come with several benefits.
• First, these fans combine the benefits of AC and DC fans, and their operation is electronically controlled.
• The onboard electronics on the EC motor constantly monitors the power consumed during its operation and can auto adjust as required. This feature makes these fans energy efficient as the motor helps reduce power consumption.
• They have a PCB connected to a software application that helps precision control using various methods, depending on the device they are fitted in.
• These fans have a long operational life. Also, the possibility of wear reduces as there are no carbon brushes on the motor.
• Our compact EC centrifugal fans can fit into constrained spaces in devices or machines. Despite the small size because of the external rotor, they have a huge capacity to rotate at the required speed.
• There are multiple speed control features in EC fans which offers them a competitive edge over AC motor fans.
• Once you partner with us, you can be totally assured about the quality and custom options we offer for our EC centrifugal fans.
• We offer fast turnaround times when it comes to shipping and transportation.

How to Choose the Right EC Centrifugal Fan?

Here are some selection criteria for electronically commutated fans.

• Application Requirements: First, consider your application requirements and operating environment in terms of the highest possible temperatures, pressures, and other related parameters. Weigh these against the features of the EC centrifugal fans available.
• Thermal analysis: Determine the maximum possible heat that a system or machine may generate while in operation. This way you can estimate the amount of air that needs to be drawn in and pushed out by the fan to keep the machine cool. It is essential to consider all the elements such as the temperatures of any fluids or gases circulating in the system, system components and their materials used, the expansion potential of these components or gases due to heat, and so on.
• Airflow requirements: Here, you need to estimate values for parameters such as heat load, required ventilation rate, space available, possible presence of contaminants or air pollutants that need to be pushed out, and so on.
• Pressure requirements: Determine the static pressure requirements of your application or system. These values must match with the airflow rate requirements.
• Size and installation: Our fans are quite easy to install based on the instruction guide we offer. However, based on your application, choose the right size in proportion to the weight, height, clearance requirements, as well as internal space available. We are here to help in case you need any technical assistance. Also, check the mounting options available.
• Variable speed control requirements: Choose an EC centrifugal fan of you require variable speeds as these fans have the right mechanisms for precise speed control.

EC-fans are up to 30% more efficient than AC-fans

EC-fans are up to 30% more efficient than AC-fans and the most efficient while partly loaded

EC motor efficiency ranges between 80% and 90%. To put this into perspective, a three phase induction motors maximum efficiency is at 75%, and PSC (permanent split capacitor) motors have a maximum efficiency of between 60% and 70%. By using an EC motor the payback is instant and can provide cost effective savings over its lifetime. You can see the example of efficiency and energy saving features demonstrated here.

EC-fans are easily controllable (0-10 V)

In terms of speed control and features, because the motor's operation is controlled by software, EC motors allow customers to optimize and integrate the motor, fan and controller with the application, and to include features like data communications, constant volume control, variable speed, etc.

Applications

• EC fan array

• Electronic cabinet cooling

• Clean room modules

• Heat exchangers

• Air filtration systems

• Military HRAC

• Pharmaceutical/biological control systems

• Computer room air conditioning (CRAC) systems

• Air-handling units
